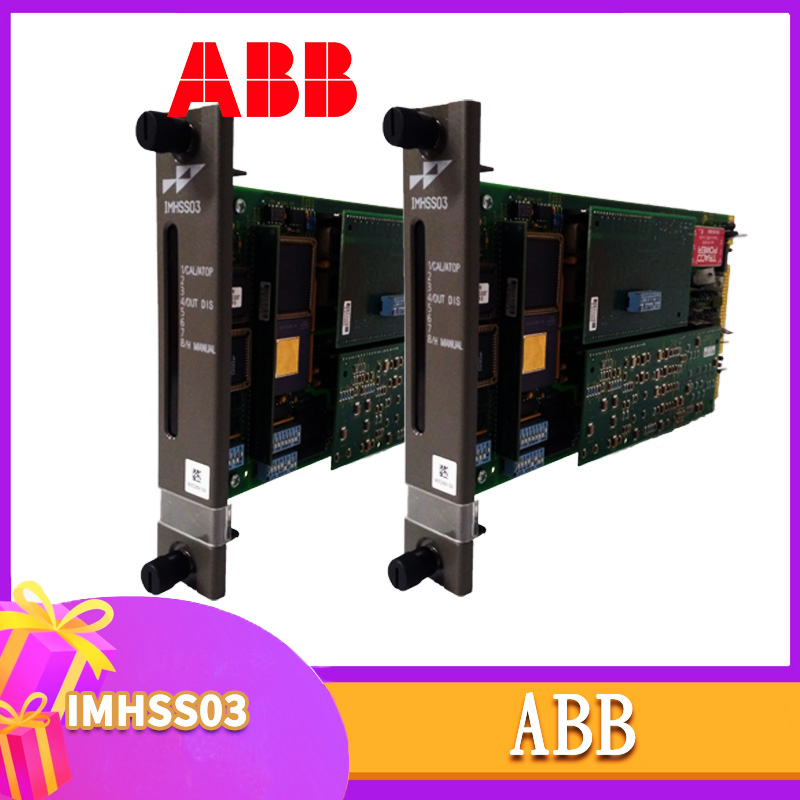

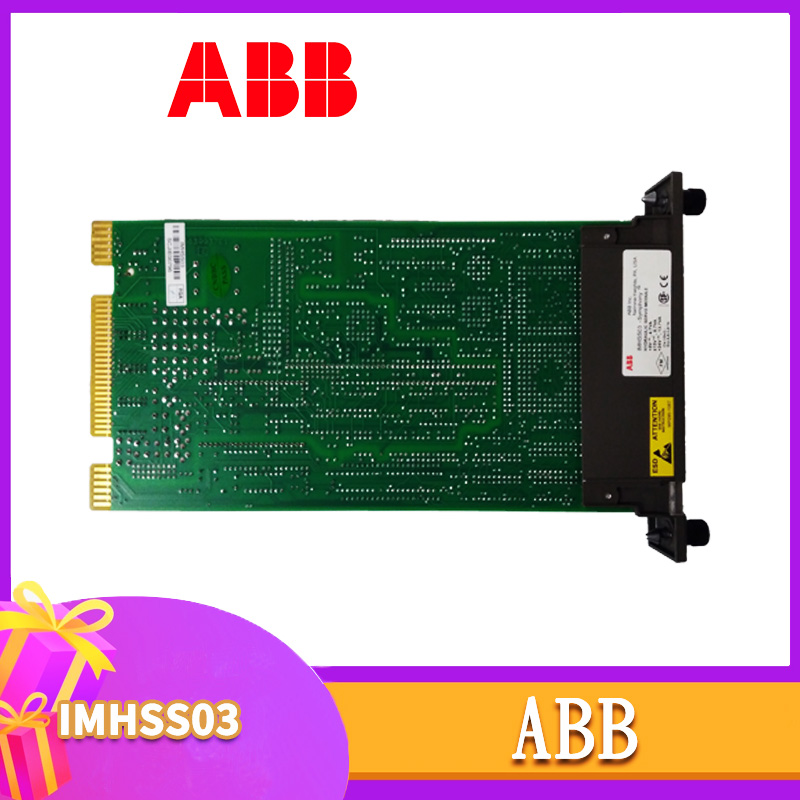

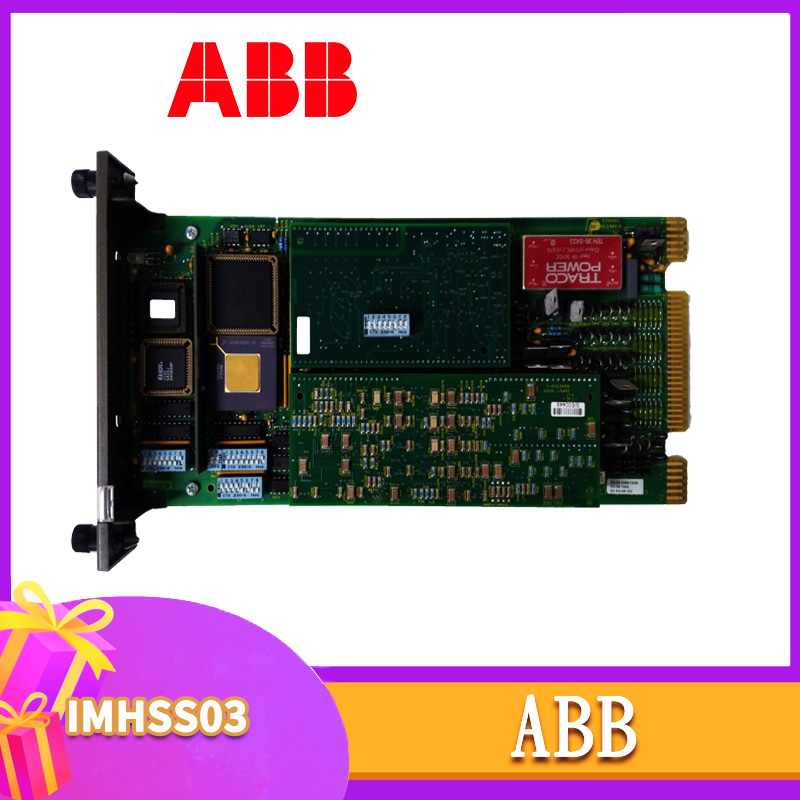

ABB-IMHSS03液压伺服子模块

Description

产品概述

ABB-IMHSS03是ABB贝利系统中的一个液压伺服子模块，用于控制液压缸的运动。它具有高精度、高可靠性、高响应速度等特点，适用于各种工业自动化领域。

产品参数

电源电压：24V DC

额定电流：5A

最大电流：10A

输出功率：120W

控制方式：模拟量/脉冲量

响应频率：500Hz

精度：±0.05%FS

可靠性：MTBF>10000小时

产品规格

尺寸：100x60x30mm

重量：0.5kg

防护等级：IP65

系列

IMHSS系列液压伺服子模块是ABB贝利系统中的一个系列产品，具有以下特点：

体积小巧，重量轻

高精度，高可靠性

高响应速度

易于安装和维护

特征

采用先进的液压伺服技术，具有高精度、高可靠性、高响应速度等特点。

采用模块化设计，易于扩展和维护。

具有多种控制方式，可满足不同应用需求。

具有完善的保护功能，可确保安全运行。

作用

液压伺服子模块是一种用于控制液压缸的运动的装置。它通过接收来自上位控制器的控制信号，将电信号转换为液压信号，驱动液压缸运动。液压伺服子模块具有高精度、高可靠性、高响应速度等特点，可广泛应用于各种工业自动化领域。

用途

ABB-IMHSS03液压伺服子模块可用于各种工业自动化领域，如：

数控机床

机器人

包装机械

印刷机械

纺织机械

食品机械

工业机器人

应用领域

工业自动化

机床制造

机器人

包装机械

印刷机械

纺织机械

食品机械

工业机器人

Product Description

The ABB-IMHSS03 is a hydraulic servo submodule in the ABB Bailey system,used to control the movement of hydraulic cylinders.It features high precision,high reliability,and fast response speed,making it suitable for various industrial automation applications.

Product Parameters

Supply voltage:24V DC

Rated current:5A

Peak current:10A

Output power:120W

Control mode:Analog/pulse

Response frequency:500Hz

Accuracy:±0.05%FS

Reliability:MTBF>10000 hours

Product Specifications

Dimensions:100x60x30mm

Weight:0.5kg

Protection grade:IP65

Series

The IMHSS series hydraulic servo submodules are a series of products in the ABB Bailey system,featuring the following characteristics:

Compact size and light weight

High precision,high reliability

Fast response speed

Easy installation and maintenance

Features

Adopts advanced hydraulic servo technology,featuring high precision,high reliability,and fast response speed.

Employs modular design for easy expansion and maintenance.

Provides multiple control modes to meet different application requirements.

Features comprehensive protection functions to ensure safe operation.

Function

A hydraulic servo submodule is a device used to control the movement of hydraulic cylinders.By receiving control signals from the upper controller,it converts electrical signals into hydraulic signals to drive the hydraulic cylinder to move.Hydraulic servo submodules feature high precision,high reliability,and fast response speed,making them widely applicable in various industrial automation fields.

Applications

The ABB-IMHSS03 hydraulic servo submodule can be used in various industrial automation fields,such as:

Numerical control(NC)machine tools

Robots

Packaging machinery

Printing machinery

Textile machinery

Food processing machinery

Industrial robots

Application Fields

Industrial automation

Machine tool manufacturing

Robotics

Packaging machinery

Printing machinery

Textile machinery

Food processing machinery

Industrial robots
