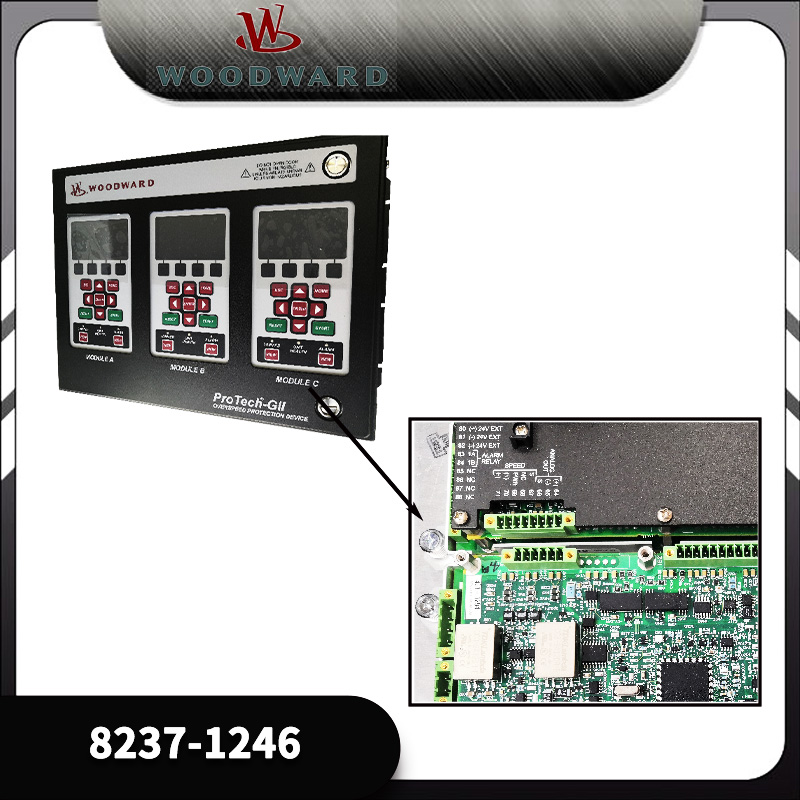

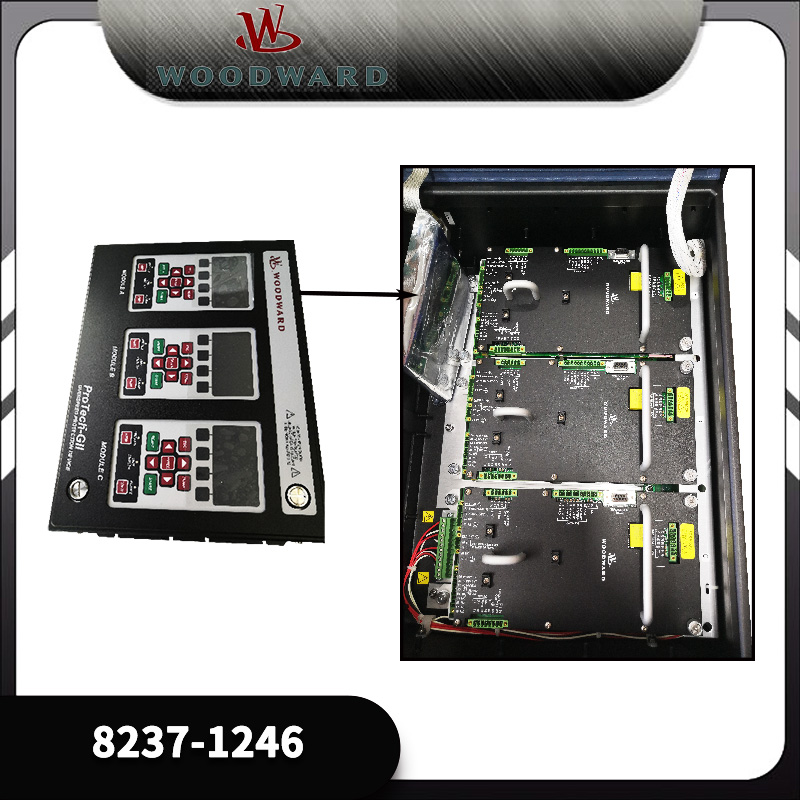

WOODWARD 8237-1246超速检测保护装置

Description

产品概述

WOODWARD 8237-1246是一款可配置的超速检测系统，用于保护各种类型的旋转机械免受超速损坏。它是Woodward ProTech-GII系列的一部分，提供可靠、经济实惠的超速保护解决方案。

产品参数

速度范围：0至30,000 RPM

精度：±0.25%

分辨率：16位

输入类型：磁阻拾音器、涡轮机转速表或其他脉冲信号

输出类型：继电器、模拟或数字信号

电源要求：24 VDC或48 VDC

功耗：20 W

工作温度：-40°C至+85°C

防护等级：IP66

产品规格

模块尺寸：203 mm x 127 mm x 64 mm

重量：1.8 kg

连接：M12连接器

系列

WOODWARD 8237-1246属于Woodward ProTech-GII系列，该系列还包括其他超速检测系统和保护装置，用于满足各种应用需求。

特征

高精度和可靠性

宽速范围

多种输入和输出类型

可配置性强

诊断功能齐全

作用

WOODWARD 8237-1246的主要作用是监控旋转机械的速度，并在速度超过预设限值时发出警报或触发保护动作，以防止设备损坏。

用途

WOODWARD 8237-1246可用于各种工业应用，包括：

燃气轮机

蒸汽轮机

水轮机

泵

压缩机

鼓风机

应用领域

WOODWARD 8237-1246广泛应用于需要可靠超速保护的各种行业，例如：

电力

石油和天然气

化学品

水处理

造纸

钢铁

Product Description

The WOODWARD 8237-1246 is a configurable overspeed detection system designed to protect all types of rotating machinery from overspeed damage.It is part of the Woodward ProTech-GII series,providing a reliable and economical overspeed protection solution.

Product Parameters

Speed range:0 to 30,000 RPM

Accuracy:±0.25%

Resolution:16 bits

Input type:Magnetic pickup,turbine tachometer,or other pulse signal

Output type:Relay,analog,or digital signal

Power requirements:24 VDC or 48 VDC

Power consumption:20 W

Operating temperature:-40°C to+85°C

Protection rating:IP66

Product Specifications

Module size:203 mm x 127 mm x 64 mm

Weight:1.8 kg

Connections:M12 connectors

Series

The WOODWARD 8237-1246 belongs to the Woodward ProTech-GII series,which also includes other overspeed detection systems and protection devices to meet various application needs.

Features

High accuracy and reliability

Wide speed range

Multiple input and output types

High configurability

Comprehensive diagnostic capabilities

Function

The main function of the WOODWARD 8237-1246 is to monitor the speed of rotating machinery and provide an alarm or initiate protective action when the speed exceeds preset limits to prevent equipment damage.

Applications

The WOODWARD 8237-1246 can be used in a wide variety of industrial applications,including:

Gas turbines

Steam turbines

Hydro turbines

Pumps

Compressors

Blowers

Application Areas

The WOODWARD 8237-1246 is widely used in various industries that require reliable overspeed protection,such as:

Power

Oil and gas

Chemicals

Water treatment

Paper

Steel
